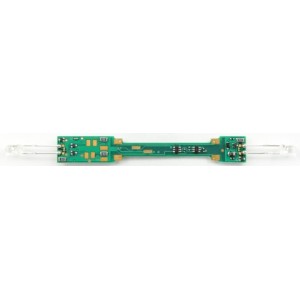

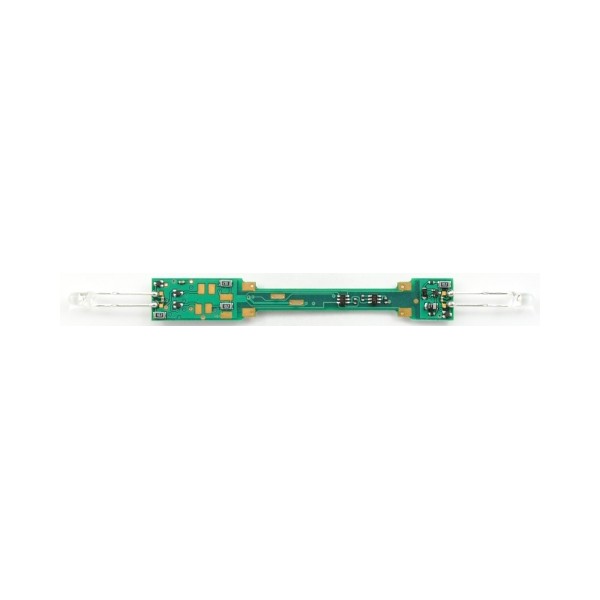

IMD4 Decoder for Intermountain SD40T-2, SD45T-2 & SD45-2

IMD4 Decoder for Intermountain SD40T-2, SD45T-2 & SD45-2


£46.99

TCS

TCS-1327

The IMD4 is a N-scale drop-in decoder which is designed for InterMountain locomotives. Examples include the following:

InterMountain:

  • SD40T-2
  • SD45T-2
  • SD45-2

See the installation pages for a full list of compatible engines!

  • Back EMF Load Compensation:

Provides superior slow speed control and high performance under load.

  • Quiet Drive:

Super-quiet motor control for "buzz" free motor performance.

  • DC Mode:

Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

  • RailCom®:

This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.

  • Variable Momentum:

Allows you to make custom acceleration and deceleration curves.

  • LED Support:

This product does not require external resistors when connecting LED's.

  • Incandescent Bulb Support:

This decoder can be used with 12 Volt bulbs.

  • Function Remapping:

Buttons 0 through 12 may be used to control the lighting functions of this decoder.

  • Programmable Lighting Effects:

Choose from 20 separate user-programmable lighting effects!

  • Dimmable Brightness:

Configure multiple different brightness levels for your LED's or incandescent bulbs.

  • Decoder Lock:

Feature which prevents accidental/unwanted programming while activated.

  • Airwire™ Compatible:

Fully compatible with Airwire™ operation.

  • User-Loadable Speed Tables:

Configure custom speed curves and set speed limits.
